Top Web Design Mistakes EXPOSED!
Version 1.004
This article lists common usability web design mistakes that many website designers tend to make. Web usability refers to the ease of use when trying to accomplish a task at a website.

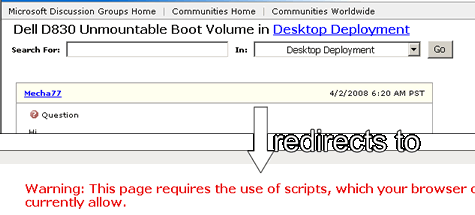

JavaScript is such a great technology - it allows much more interactivity with a website. But it should only be used when it is needed. A simple example
<a href="javascript:goToLink('index.html');">Go to Home Page</a>
Now try doing a Save Target As on the above link. You get the Save As dialog. There's also the added advantage of the search engine being able to index the linked page.
Recommendation
This is a very simple example of how an innocent looking code can affect users interacting with it in other ways. Other common misuses of JavaScript
As the main navigation system, sub-sections are fine as long as the main pages have links to the sub-sections in HTML code
To trail a snippet of text or image wherever the cursor moves around the page
To display a document within a page with custom JavaScript scroll bars, breaking the usual way of scrolling. Designer sites love to use this, especially to display News Updates.
To disable right-click or disable selection of text or some more-considerate-webmasters disable right-click on certain parts of the page, like the images. More on this below
2. Spelling and Grammar Mistakes
Face it, we all make spelling mistakes sometimes when we type.
Normally we leave that burden
to Microsoft Word Spell Checker,
But, the web editor you use may not as feature rich as Microsoft Word. It may catch spelling errors but not grammatical ones.
Scan the document through Microsoft Word by opening a copy of it as it likes to change the HTML code unnecessarily. Yes, that means you have to copy every change manually to your web editor.
3. Flash, Shockwave, Director and Java
Flash is cool. Java, cooler. Director, awesome! But it brings a host of disadvantages to a site using it:
Can't be indexed by search engines - Especially sites that are
fully based on Flash, search engines will have trouble indexing
them with the exception of Google - which does its best to index but always turns out much worse than a non-Flash site.
Big download = Long Wait - If you are using a Flash movie as
a splash image, put a "Skip Introduction" link outside the Flash in HTML code, not in the
movie itself, as it will bar users without Flash from entering.
Examples of good usage of the above technologies
As a movie the user expects (eg. an introduction movie)
An animation of a process diagram
Examples of bad usage
As the main navigation bar in every page. This will prevent users who don't have the plug in unable to navigate to any of your pages). Search engines would also not be able to index your site properly.
As an static image with background music or sound effect, especially when the user is not expecting it (Imagine a 2 second Whoosh sound repeatedly playing from the top left logo while you are reading this article)
4. Use Separate Thumbnail Images to Link to Larger Images
A common mistake many new designers make is placing a 800
x 600 image in a webpage resized to 32 x 32 manually (i.e. setting the width and height attributes to a much smaller number).
By doing this, the
user has to download the whole 800 x 600 image, just to view
the 32 x 32 image fully.
Recommendation
There are free programs, such as Easy Thumbnails, that allows you to save a smaller
version of the image. Use the smaller image to link to the bigger
one and you cut down the time the user has to wait for your page
to load.
5. Animations with Flash and GIFs
Animations serve to distract. That is why advertisement banners are animated (or even in Flash animation).
For example, falling snow flakes are better used for one page (preferably only during a special occasion) rather than on every page. Likewise for page transitions - limit to one page.
It goes without saying that animated GIFs should never be used as backgrounds.
Animations are good when used as a user expects - introduction movie, a Flash movie, an animated diagram, advertisements or greeting cards.
Now, wasn't reading this text hard with the animation on the right? Click the Stop (thanks IE!) button if it is annoying in this as well as in other pages. Unfortunately, it does not work for Flash and other types of non-GIF animations.
6. Background Music / Mp3 / Wave File
Here I am enjoying The Reason by Hoobastank and suddenly a Mortal Kombat music fires on entering a page drowning the song. Thankfully, IE allows users to stop the music by hitting the Stop button.
The worst case is having a MIDI file on every page.
Recommendation
Don't put music files to run in the background on a web page, unless it is specifically requested by the user (eg. he intentionally clicked on a link to sample the music).
If you must use a MIDI music on a website, put the code on a frame
(like a navigation frame bar) and allow the user
to stop it by providing player controls.
This way, the music continuously
plays throughout the visit (instead of changing for every page) and the user has a choice of stopping
it.
7. Splitting content into many pages / Slide Shows
Many long articles on the web are split into multiple pages. Compare the following two scenarios:
User starts reading article. Reaches end of page. Moves the pointer to the "Next Page" link, Click the link. Wait for the page to load. Tries to remember where the article left off. (repeat for each page)
Compare with
User starts reading article. Reaches end of page.
Which is faster and saves more time?
The main reason behind splitting articles is because banner ads could only be shown once on every page. Having multiple pages, would mean that the user would see more ads.
And the feeling that long pages discourages the user - It does - but not for articles. Users expect articles to be long, but not simple product or home pages.
Recommendation
Put the whole article on one page. Avoid any kind of "Image Slide Shows" in HTML - it is a variant of paging too.
If you must split into many pages, consider implementing a Printable Version (with the ads removed) so that users who want to print your article don't have to print one page at one time.
Similar to above, this "technique" is used by many designers. Each FAQ question's answer is a link that points to another page. To read the entire FAQ, the user has to perform a click on each link, read the text and a back button click for each FAQ.
For an entire FAQ of about 10 questions, that relates to 20 clicks. What about the time spent to wait for each page to load?
Recommendation
Place entire FAQ questions and answers in one page. Put anchor links for each FAQ question to the answer for easier navigation.
9. Use High Contrast Text Colors
Can you read me?
Imagine how hard it is to read with one long paragraph of text especially with a textured background as compared to a background of solid color.
Ensure your text is readable without the users having
to strain their eyes. There's nothing worse than to get a dark gray text
on a black background when a user surfs with images disabled.
The text on the right may be easy to read on a small scale,
but on one whole page, it'll cause the user to hit the Close button. Thankfully, modern browsers allow you to hit Ctrl+A (Select all) to make the text more readable.
Recommendation
Choose colors that give a good contrast balance to the text and background. Avoid textured backgrounds that contain a mix of bright and dark colors.
Design your site for the minimum - 800 x 600. Designing higher than that produces a horizontal scroll bar for users using 800 x 600 display resolution. Users don't like scrolling
horizontally when on a website.
Although the vast majority (as of 1st Jan 2006) of users use 1024 x 768, there is still a significant number still using 800 x 600, probably with old computers.
There are also some people who prefer to open websites at 800 x 600 in their high resolution display, browsing two sites side-by-side at a time.
Recommendation
Follow a liquid design of layout. The basic principle of achieving this is by using percentage values for table widths. This allows the text to fill in the entire available space in the browser - like Bootstrike.Com does.
If you need to have a fixed width design, consider having different versions for an 800 x 600 and 1024 x 768 users like Microsoft.com does. Try refreshing the site with a smaller browser window and you get to see the 800 x 600 version.
11. Font Usage
Use a common font in your pages. If the user does not have the
font, the browser will render the page using its default fonts and would not be what the designer intended it to be.
This is an important aspect of readability in web design.
Please, don't use Times New Roman. This font is more appropriate for print documents, which is why if you have a "Printable Version" of a document, it should use this font mainly.
Recommendation
Use common fonts from this list of core fonts in Wikipedia. Most sites use Arial.
You can also specify multiple fonts instead of one single font. For web usage, it is recommended to use "Arial, Helvetica, sans-serif"
so that the browser will use Helvetica if the user doesn't have the
Arial font.
Likewise, for print layouts, it is recommended to use "Georgia, Times New Roman, Times, serif".

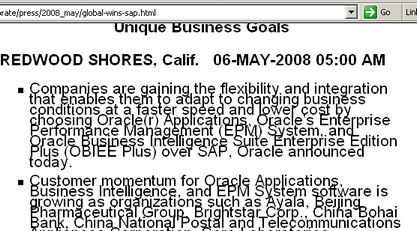

12. Small Font Sizes and Making Text Resizable
Small fonts are great for small snippets of text like copyright notices.
But for long articles, the user gets tired of the small font and gives up eventually.
Most users do not use the Text Resize feature of the browser. In fact, the feature doesn't even work with some websites.
It is becoming a "cool" factor for websites to use small microscopic fonts like the one on the right. Plainly put, it is fine for short snippets of text. Use it on a long article like this, and the user gets frustrated. Try reading this article with a smaller font size (View > Text Size > Smaller).
Internet Explorer has a feature (or bug?) preventing font size changes (via Edit > Text Size) when websites use pixel (px) units to specify the font size. Keep in mind that a large percentage of users still use IE (with Firefox and Opera gaining on).
Recommendation
Try to keep font sizes above 0.8em.
Use font size units like EM and % to specify font sizes in CSS style sheets. Users are then able to use the Text Size functionality to modify font sizes as desired.
13. Standard Consistent Navigation Bar
- Home
- About Us
- Products
- Services
- Contact Us
Every page should have an effective website navigation bar, either on the top or on
the left. Don't place the main navigation
on the right - users are accustomed to left or top navigation links.
If you must place links on both sides,
try to keep the left/top area for the main links.
Recommendation
Use a basic template for every page that contains links to the main sections of the site. Avoid using DHTML (Dynamic HTML) JavaScript Navigation Menus as search engines will not be able to access the links in them.
14. Optimizing Images
Optimize your site images so that they load as fast as possible
on the user's monitor. There are tons of software which do this
you, free ones included.
For example, JPG photo files can be reduced in file size with only minor sacrifices in quality. GIF files also have a Loss and Number of Colors property that can reduce file sizes.
Recommendation
Unless the photo is for users to save and print, don't place the original unaltered 4 (or more) megapixel photo on a page. Resize it to a comfortable size (eg: 800 x 600) which in turn reduces the disk space and download time.
Provide a direct link to the higher resolution image if you believe the user may want to print the image.
15. Title, Meta and Keyword tags
Some websites could have made it higher if they had thought about
replacing those "Untitled Documents" titles (take a look) with more meaningful
ones. Placing Meta keyword and description tags also help search engines to
index your site.
Google has also begun to take advantage of the META DESCRIPTION tag. Sometimes it will display the content of this tag for the site description in the search results. Keep in mind though - there's a limit to how much text Google is willing to index for this tag.
Recommendation
Perform a search for "Untitled Document" in your whole website. Replace them with meaningful titles.
To make your pages more search engine friendly, define the meta description and keywords tag in every page.
<meta name="description" content="Description of less than 160 characters. Avoid long words. ">
<meta name="keywords" content="keywords separated by commas. Keep it within reasonable limits ">
16. Attaching Labels to Form Objects
If you think I am referring to the words describing the form input, you are wrong. Try clicking on the word Male on Form A on the right. Now try doing the same in Form B.
It is more beneficial when used in radio boxes, as the click-to-select area for them are much smaller than the other inputs. By attaching a text label to it, the user can also click on the text to select the radio button.
In fact, this is how normal Windows GUI applications work.
Recommendation
This is the HTML code for Form A's "Male" radio button
<input name="sexRadio" type="radio" value="radiobutton" checked> Male
To attach the text "Male" to the radio button, we give an id to the form object and wrap the Male text with a label.
17. Organizing Forms with Fieldset and Legend tags
Sometimes, forms can get very big. One option is to use tables and organize them neatly.
The other is to use Fieldsets and Legends. Fieldsets draws a frame around the form objects. It allows you to specify a name for the frame by using the LEGEND tag.
Recommendation
This is the HTML code for Form A's "Male" radio button
For example, if your navigation uses images, consider adding the textual description to the alt attribute images. The Home image would label Home, the Products as Products, etc.
Similarly text links can also have the title attribute set.
It helps the disabled and folks who disable images
or use text browsers when surfing. This is also done for search engine optimization purposes, since they are unable to read images.
19. Splash Images
This point was highlighted above, and is being said again on a
more general context - Put a separate "Enter Site" link
outside the Flash move/shockwave/applet application so that the
user can enter the site would not need the plug in to enter the site.
This way, if the user has ActiveX/plug-ins disabled, he can still
enter the site. Search engines can also better index your
page as they will also be able to follow the link.
Avoid splash pages with one "Enter Site" link at the center. If splash pages are needed, consider placing the main section links along with the splash image.
20. Feedback Links and Processing E-mails in the server
It is good practice to put a link to a feedback e-mail form on every page of the site.
Keep in mind that a majority of
users use web-based email such as GMail, Hotmail, Yahoo and Lycos. Try clicking on the link below.
An e-mail box opens up. For most users, the Internet Connection Wizard starts up. This is because most of them use free web mail services.
To e-mail George, users would have to extract the mail address from the Outlook form, fire up their webmail website, compose a mail and paste your e-mail address there.
Keep a simple form that submits to a server side script, which e-mails the form directly to you.
Recommendation
Forms should submit to a server side script to process the mail. Scripting languages such as PHP/ CGI / JSP / ASP server side programming can be used to process the form input.
Do not use forms that that uses Outlook Express to send a mail. There are free scripts which can assist to send the form for you if your host prevents scripts from executing.
21. File Naming
Most servers support spaces in filenames, but avoid doing
so. Always use a lowercase filename and folder name without any
special symbols (including spaces but not "_") in them.
Windows based HTTP servers
usually are not case sensitive but Unix servers (which are most common)
are.
Recommendation
If your server is hosted in a Unix server, avoid usage of capital letters in the file and folder names. This helps a user remember the site address easier if he or she decides to return on a later time.
22. Lumping Text in One Big Paragraph
This is a snippet of text. This is a snippet of text. This is a snippet of text. This is a snippet of text. This is a snippet of text. This is a snippet of text. This is a snippet of text. This is a snippet of text. This is a snippet of text. This is a snippet of text.
Don't pile a block of text all in one big paragraph. Try to shorten
it to 3-6 lines per paragraph and users will have an easier time
reading the content.
Don't use the whole browser width
for one line of text. Keep it to about 75-90% of the width of the screen, especially when page margins are set to zero.
23. Disabling Right-Click and Selection of Text
The sole intention of disabling these functions was to prevent viewing the source code and saving of the images. This still works as intended for the casual web surfer but not determined users who would either disable JavaScript or retrieve the file from the cache.
Such a method comes with its share of problems. By disabling right-click, you remove all the capabilities of the right-click menu - some of them do not have their own toolbar icon or menu item.
By disabling text selection, you are adding an extra annoyance to the user who has to manually type out the text - unless he/she is savvy and knows how to disable JavaScript.
A common piece of advise comes to mind here - If you want your html/images/text to be private, then don't put it online.
24. Frames Frames Frames
Frames have generally been frowned upon by the web design community. Pages in frames don't get added to the users bookmarks properly, causing problems when the user tries to return to the site.
When the user enters a framed page from a search engine, it causes a problem as the page would not have any navigation, which is located in another frame.
Recommendation
Avoid frames. Do not use frames for your main navigation, although it will make updating much easier.
Do not use frames to add a little header on the top of every external website your site links to. However, if you must do this, ensure that a link is provided to remove the frame.
Use the underline function for links and links only.
The current conception with many web designers is that underlines look ugly. Instead, many choose to provide a bold formatting with a different color to the links.
Some websites even go to the extent of showing that a link is a link only when the mouse is hovered over the text and some formatting - like a underline, over line or a double underline - takes effect.
This makes it very frustrating for users to recognize links, forcing them to hover the pointer on every word that could be a possible link.
Recommendation
Don't use the "text-decoration: none" CSS tag for links. Change colors to fit the site theme, but leave the underline alone.
Don't underline text which are not links. Use a special tag like Header 3 or Header 4 to place emphasis on it.
26. Proprietary Documents Types and Extensions
The purpose of Adobe's PDF and Microsoft's DOC formats are for viewing and printing documents with the intended paging and formatting.
These are big size file formats, taking up much more disk space than a regular HTML file hence a user has to wait for a longer period of time for the document to load. The usual browser interface changes to the interface of the document owner's application (e.g. opening a DOC adds new menus and buttons to the IE window). Finally, the user has to wait till 100% of the document has been loaded before he can view anything.
The newer PDF readers supports dynamic loading; it can render a document as it downloads. But the other usability problems still remain.
Recommendation
Provide a HTML version of the document. Use PDF as an alternate download, indicating clearly that it is a non-html file. Most users would want quick access to the content of the document, and if they want a better version for printing, they will get the printable version.
27. Pop-Up Windows
Don't open entire websites in a pop-up window. Websites are meant to be seen in the default browser window with all the status bars, title bars, toolbars and the other normal user customized add-ons.
Some of the reasons cited by designers for this tactic are to prevent source viewing and to provide a full customized interface to the user, Both of these reasons are not valid - by right-clicking the page, or hitting Ctrl-N (thanks IE!), a user can view your whole site source and images.
Provide a customized interface? What about my normal browser buttons? Where do I enter a new URL to go to another site?
Recommendation
If you are worrying that the user's browser may be too wide for your site, simply center the table design in the page.
Do not use advertising companies which rely on pop-ups and pop-unders. They will chase away your visitors, and most of them don't work due to most browser's built in pop-up stoppers.
AJAX is the latest cutting edge technology now to evade the web. Unfortunately, when a website uses it, it brings lot of inevitable changes to the way a user communicates with the website.
The first issue is that JavaScript is required. Secondly, it also requires ActiveX to be enabled in Internet Explorer. Many corporations disallow ActiveX controls to run for security reasons, and websites that force the use of AJAX have to forego such users. And lastly, most implementations can disable the Browser's back button.
Why is ActiveX Required?
Technically, it is because Microsoft has placed the XMLHttpRequest under the ActiveX branch, which is why attempting to initialize the object will result in a error even when JavaScript is enabled.
It is worth a note that the latest Internet Explorer 7 fixes that - placing the XMLHTTP object natively.
Recommendation
If you want to use AJAX, be sure to provide an alternative non-XMLHttpRequest way to access your application. Till IE7/Firefox gets hold of the market, that is.
29. Not Setting a Background Color

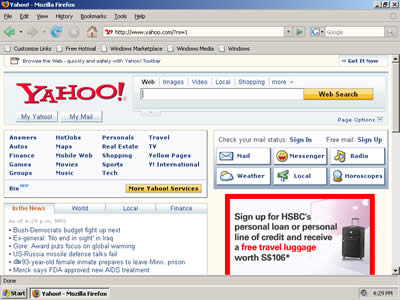

Do not assume all users use the default background color of white. This is how Yahoo.Com looks in my browser:

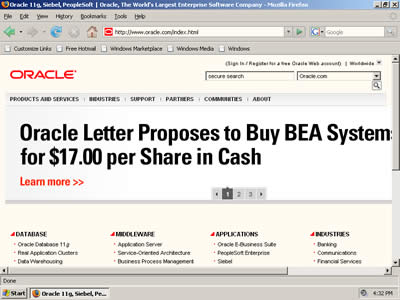

Notice that the background defaults to the user's default background color, which was not set to white. Now see Oracle's website:
You can see how the artifacts in the Oracle logo are showing through. The fix for this problem is very simple - simply set a background color for every page in the BODY tag or style sheet.
<body style="background-color:#FFFFFF">
30. Usability Testing
Test your website as in many different environments and settings as possible.
Some suggestions:
Firefox
Opera
Above browsers with images turned off
Above browsers with the images renamed/removed (so that the browser
will be unable to download them and thus will not know the actual size - to find out if you specified the widths/heights of images)
Above browsers with images renamed/removed AND JavaScript turned off
Look out for inconsistencies. Find the answers to the following questions
Does the design still hold even though the images are broken or disabled?
Can the text be readable when the images and JavaScript are disabled?
Does the layout appear as intended in Firefox / Opera?
If it is a framed page, is there some JavaScript informing the user of a framed content so that the user is not lost when coming through a search engine?
Do all pages have consistent design and titles?
Are all big blocks of text broken into small paragraphs?
Is there a feedback link on every page? Search box on every page?
Do Links have underline?
Is the Flash Movie Skip link is outside the Flash movie?
31. Not Being Accessibility Friendly
Many users of high resolution monitors force their browser to display fonts at a larger size than intended. They don't have much choice, LCDs demand that the highest desktop resolution to be used, causing the fonts to appear smaller. This is made even worse by designers who commit Mistake #12.
Even worse, some designers unknowingly design their site to 'hang' their browser when an accessibility feature is used. For example, if you try to visit the phpBB Community Forums with IE6 (with Text Size Largest, Ignore Font Sizes accessibility feature enabled), the browser hangs for no apparent reason.
Another example - Oracle's press releases. Viewing it in IE6/IE7 with large font sizes renders it as below:
See how hard it is to read the overlapping capital letters. A good example of an accessibility friendly site would be BBC.
32. Mandating Requirement of JavaScript
If your site requires JavaScript, make use of the noscript html tag to highlight it to the user. The advantage of the noscript tag is that it is only shown when the browser has JavaScript disabled.
Don't redirect users to *another* page to upgrade to the latest browser, or a page that specifies that JavaScript is required to browse the site.
An example would be Microsoft's Communities - try visiting this link with JavaScript (Active Scripting in Internet Options > Security) disabled. Notice that you can't even hit the Back button to view the page after being redirected.
Many users disable JavaScript for speed and/or security reasons. So don't make JavaScript redirects for JavaScript-disabled users to browse your site when the page appears fine without it.
I've never heard the "Search Function" tip, but it makes a lot of sense. If I wanted to search Google, I'd go to Google.com! Just let me search the site already! *grins*
Your link to the Google search is for AdSense, if you just want to use it to search your own domain you should use Google Free and you can make your own domain the default (In fact it is the default by default ;) )
It looks like you forgot one other Web design mistake. The use of reverse text (white on black). Sure, headings are fine but a complete site, that's a no no in my book. Otherwise, you've complied a lot of very good info.
Thanks for the tips.
A few notes:
#5: The Esc key would stop GIF animations on most browsers.
#9: Too much contrast can hurt the eyes on some monitors, try using more faded contrast. (For example: dark gray on white)
#23: Page source can also be accessed by going to "View > Source" or something similar to that on most browsers.
#25: If no underline is applied to links, use a very distinct color not used elsewhere on the website. Make sure all links are underlined in printable versions.
Header tags should not be used for emphasis, they should reflect a logical outline structure of a page. Use <strong> and/or <big> instead.
It's been quite some time since the article was written. I think this would be added if it were re-written: layers popping up in the middle of a page when it loads that have to be "closed [X]" Also, Flash ads that make noise when your cursor goes over them, or Flash ads that cause layers to expand if you mouse over them. Music that starts playing automatically when a page is loaded (a la most myspace pages). Annoying!
Root
I've never heard the "Search Function" tip, but it makes a lot of sense. If I wanted to search Google, I'd go to Google.com! Just let me search the site already! *grins*
Thanks for the tips.
#5: The Esc key would stop GIF animations on most browsers.
#9: Too much contrast can hurt the eyes on some monitors, try using more faded contrast. (For example: dark gray on white)
#23: Page source can also be accessed by going to "View > Source" or something similar to that on most browsers.
#25: If no underline is applied to links, use a very distinct color not used elsewhere on the website. Make sure all links are underlined in printable versions.
Header tags should not be used for emphasis, they should reflect a logical outline structure of a page. Use <strong> and/or <big> instead.
